When a garden bed starts holding water on top, crusting over, or just seeming tired no matter how much compost I add, I reach for one of the simplest fixes I know: a homemade soil aerator made from scrap shed supplies. This version uses short PVC pipe sections with the bottoms cut into teeth, plus two easy add-ons that make the tool much more comfortable and effective to use in raised beds and in-ground plots.
I like this project because it’s inexpensive, fast to build, and genuinely useful through the whole growing season. If you’ve got compacted vegetable beds, flower borders that need loosening, or spots where water just sits there after a rain, this is the kind of no-fuss garden helper that earns its keep right away.

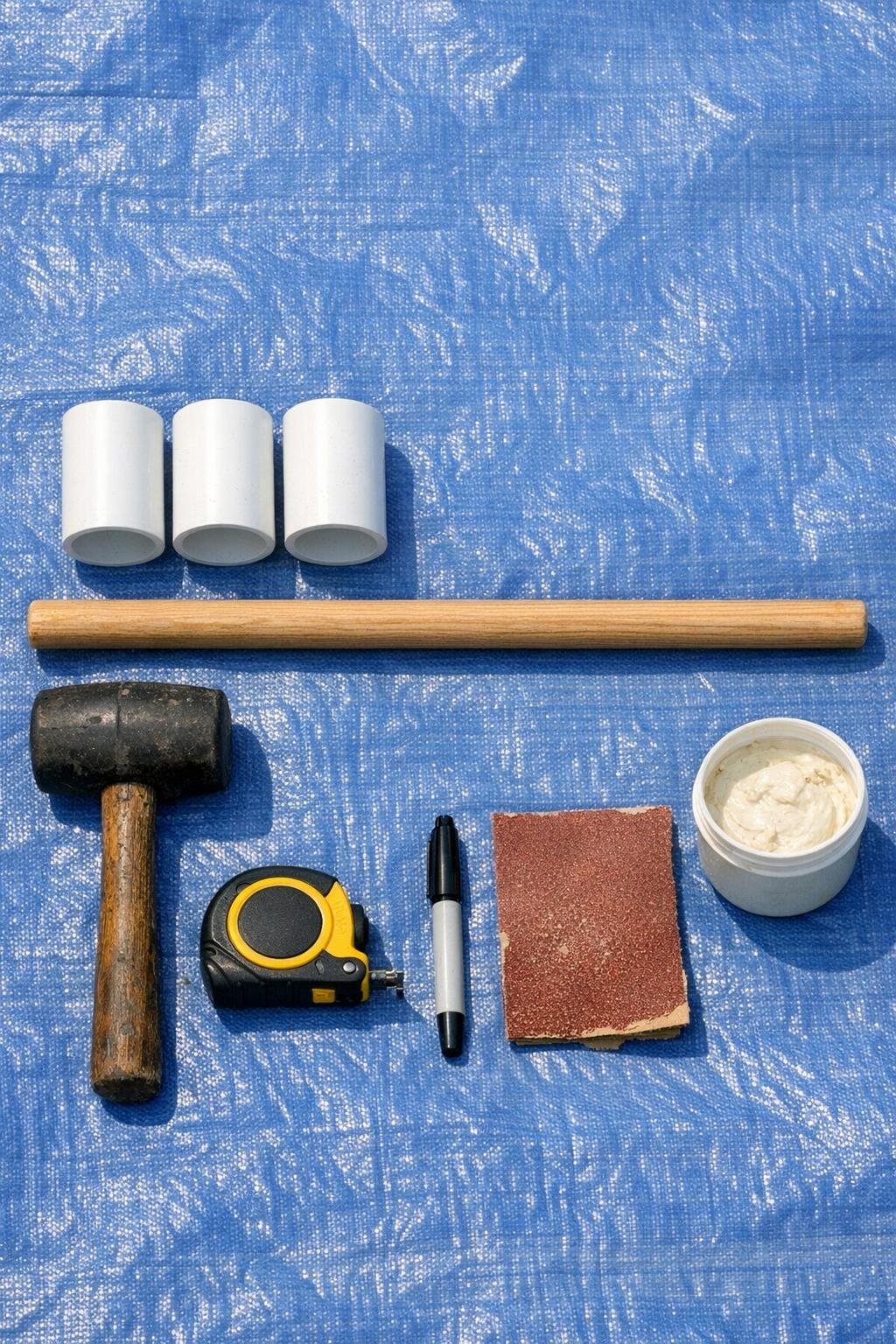

Materials
Instructions
1. Mark three 8-inch PVC sections if they are not already cut, then mark a 2-inch-deep zigzag line around one end of each piece to create the cutting teeth.
2. Saw along the marked zigzag lines to remove the bottoms and form pointed teeth on each PVC section, keeping the points fairly even so they bite into the soil cleanly.
3. Sand the cut ends first with 120-grit and then with 220-grit until the teeth are smooth but still pointed enough to pierce compacted soil.
4. Stand the three PVC sections upright in a tight triangle with the smooth ends facing up, then wrap painter’s tape around them temporarily to hold the cluster together.
5. Rough up the outside top edge of the PVC cluster and the lower end of the broom handle with sandpaper so the adhesive has something to grip.
6. Mix the exterior epoxy and apply it generously where the broom handle will join the center of the three PVC tubes, then press the handle firmly into place so it sits upright and centered.
7. Seat the old rubber mallet head onto the top of the broom handle as a cushioned striking cap, or epoxy a small rubber mallet there so you can tap the tool into hard soil without damaging the wood.
8. Let the adhesive cure fully according to the package directions, then remove the painter’s tape and check that all three PVC tubes feel solid and aligned.
9. If you want extra durability, mist the cut PVC edges with a clear exterior spray coat and let it dry completely before using the aerator outdoors.

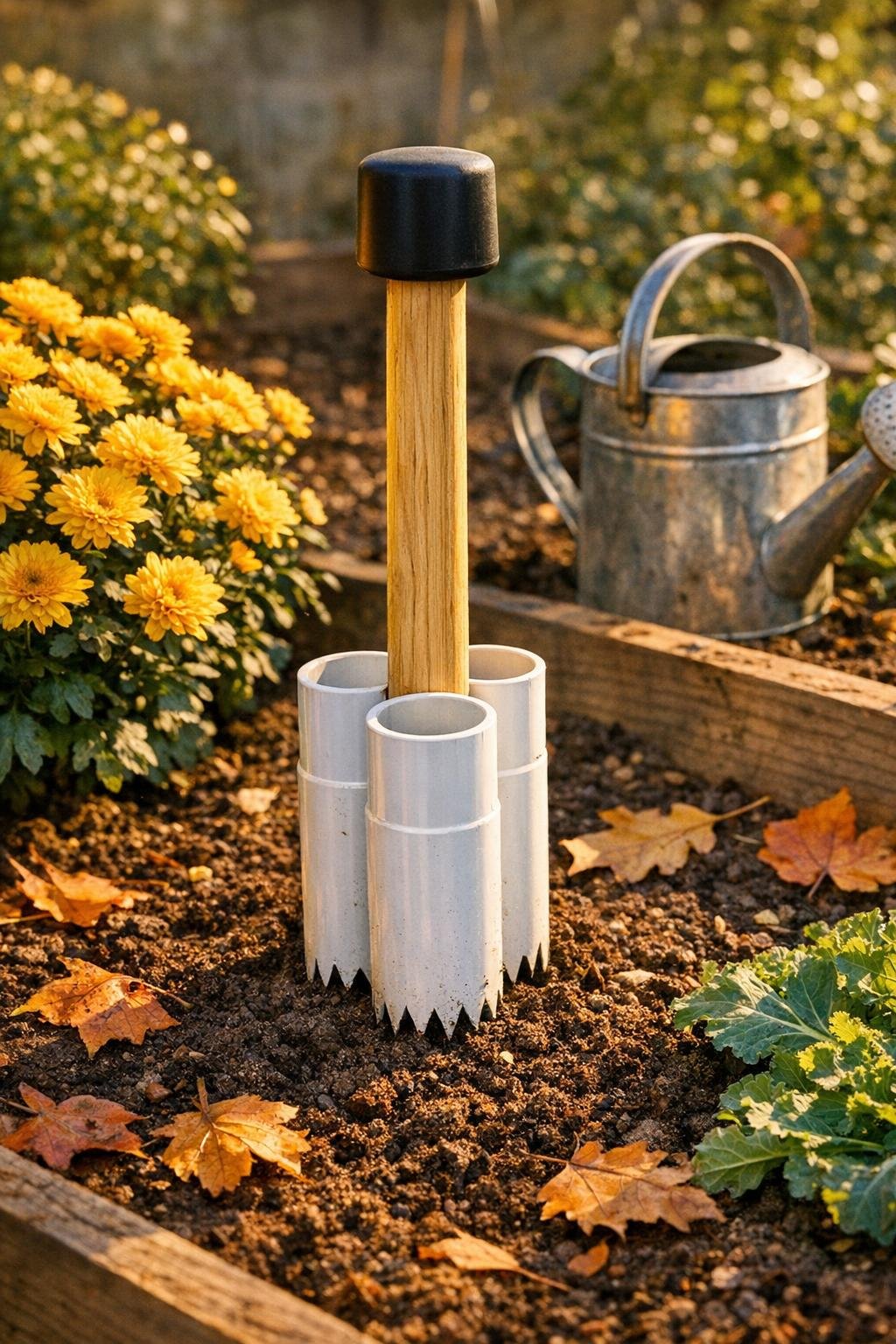

10. To use it, water the bed lightly first, press or tap the toothed PVC cluster 4 to 6 inches into the soil, then lift straight up and repeat every 6 to 8 inches across the bed to improve airflow and water penetration.
Variations & Tips
For raised beds: Keep the broom handle closer to 36 inches instead of 48 if you mainly work in raised beds and want better control in tight spaces.
For tougher clay soil: Make the PVC teeth a little deeper, about 2 1/2 inches, so they cut in more easily, but sand them well so they do not crack at the points.
For picky gardeners who hate heavy tools: This version stays lighter than a full metal aerator, so it’s a nice choice if you want something easier on your wrists and shoulders.
For better results: I always aerate the day after a rain or after a deep watering because slightly damp soil opens beautifully without turning into mud.
To protect plant roots: Work the tool between established plants instead of right at the crown, especially around tomatoes, peppers, and perennials with dense root zones.
Easy storage: Hang the aerator from the broom handle in the shed so the PVC teeth stay off the floor and do not get chipped by heavier tools.
